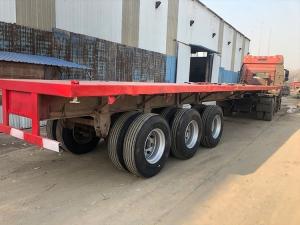

3 Axle 40ft 60ton Flatbed Container Carrier Flat Bed Semi Trailer
Used Flatbed Semi Trailer Features:
1. 3 axle flatbed trailers has a solid bed, which is made of diamond steel. There is no roof or fixed sidewalls.
2. Used for transporting container as customer's need,normally 20ft/40ft/45ft container.
3 .Each trailer with 4/8/12 units container locks to retain the container.
4. The main beam of second hand used flatbed semi trailer is made of Q345 or T700 steel to improve the
trailer’s strength; the main beams are selected according to clients’ requirement for loading capacity.
5. Clients can choose brand new tires or 40%, 60%,80% new tires.
6. Used, stocked and new chassis are optional.
7. Clients can choose used or axles and the brand of axles.
8. The unit price will be different according to order quantity.
9. Second hand used flatbed semi trailer can transport one 40ft container or two 20ft containers.
10. The color of second hand used flatbed semi trailer is optional upon clients’ choice.
USED FLATBED SEMI TRAILER SPECIFICATIONS
| Trailer Model | 3 Axle flatbed Container Semi Trailer | | Function | Carry 40ft or 2*20ft container or other stuff | | Overall Dimension
(Lx W x H)(mm) | 12500mm*2500mm*1600mm | | Tare Weight(KG) | 6350kg | | Loading Weight( KG) | 40000kg | | Total Weight(KG) | 46350kg | | Axle Brand | 3*13TON Axle FUWA Brand | | Wheelbase(mm) | 7450+1310+1310 | | Suspension system | Mechanical Leaf Spring Suspension | | Leaf spring | 90(W)mm*13(Thick)mm*10 Layer | | The material of Main beam | Q345B carbon steel,The height of the beam is 500 mm, upper plate is14mm,down plate is 16mm, middle plate is 8 mm. | | Side beam | Q235 16# channel steel | | Platform plate | 3mm Diamond plate | | Container Twist Locker | 12pcs container lock | | Tire Type and quantity | 12R22.5 12units | | Rim | 9.00-22.5 | | Traction Pin | 2” or 3.5” | | Spare Wheel Bracket | 2 pieces | | Tool Box | 1 Standard | | Landing Gear | 28ton single action supporting legs | | Brake system | Dual Line braking system | | Brake air chamber | Six double chamber | | Electrical system | 1. Voltage: 24v 2. Receptacle: 7 ways (7 wire harness) | | | Tail lamp with turn signal, brake light & reflector, side lamp etc. | | | One set 6-core standard Cable. | |
